CAD Drafting

I am an experienced AutoCAD drafter with a technical method that takes a creative approach to design challenges. My experience drafting for the Theatrical industry has trained me to find those creative solutions. I draft in both 2D and 3D depending on the project.

See below for more of my drafting examples.

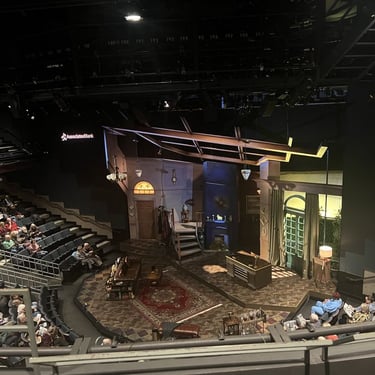

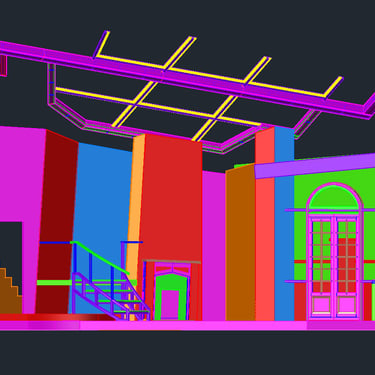

Dial M for Murder at Milwaukee Repertory Theater

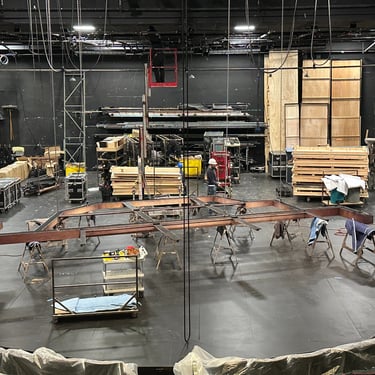

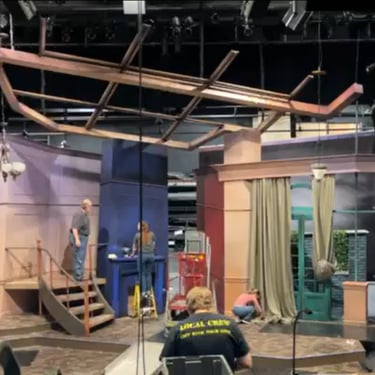

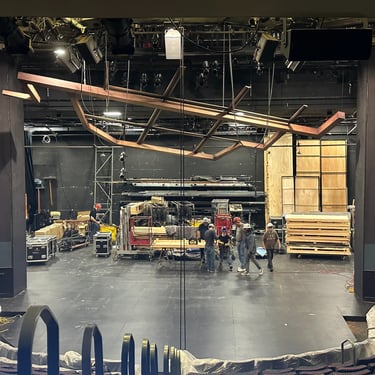

Build Plates I designed and drafted for the entire build including an abstract shaped ceiling unit rigged in the air, and walls with compounded angles that fit together to form an amorphous 3D shape of a room. Drafted in both 2D and 3D. Fabricated and installed by the IATSE local 18 staff and overhire for the Milwaukee Repertory Theater in Winter'23.

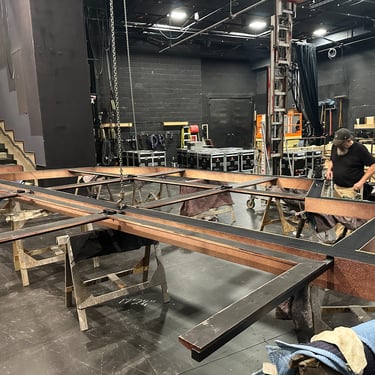

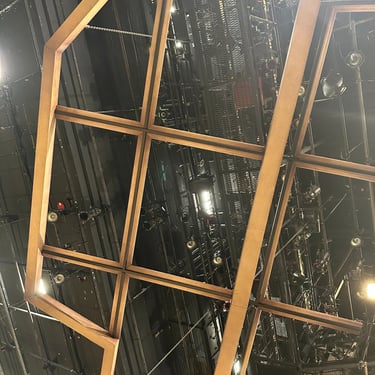

Dial M Ceiling build plate samples

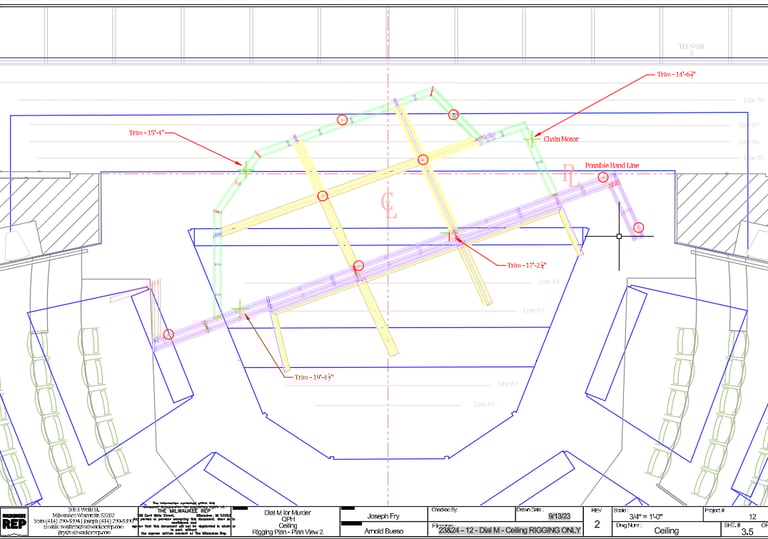

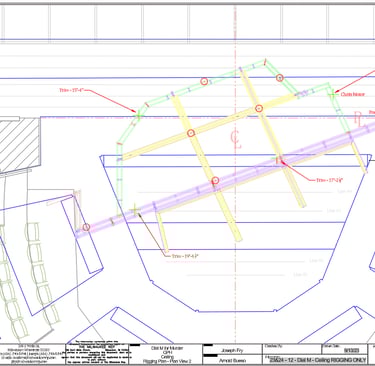

Dial M - Ceiling Rigging Plans

Dial M build plate samples - Compounded Angle Walls

Downloadable Build Plates as .pdf files

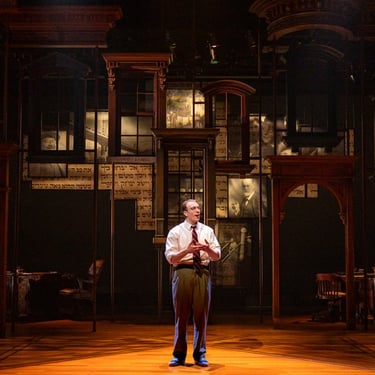

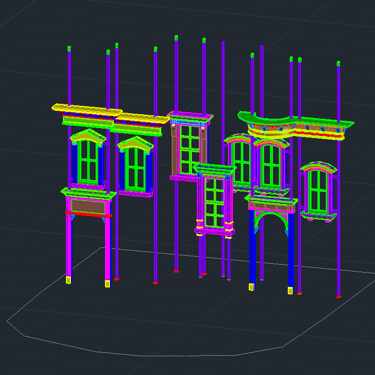

The Chosen at Milwaukee Repertory Theater

Build Plates I designed and drafted for the build of several abstract archway and window instalations. Drafted in both 2D and 3D. Fabricated and installed by the IATSE local 18 staff and overhire for the Milwaukee Repertory Theater in Spring'24.

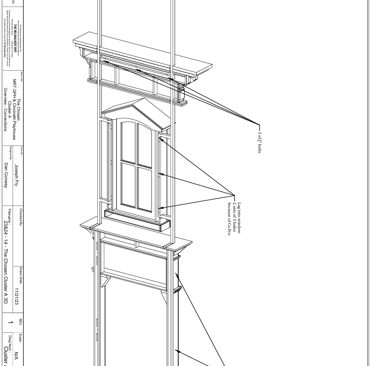

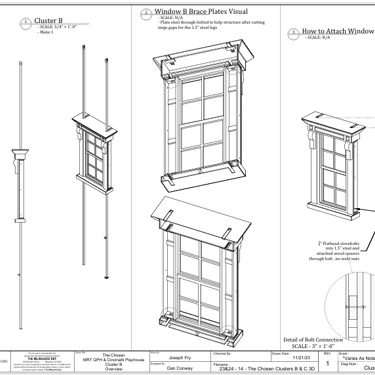

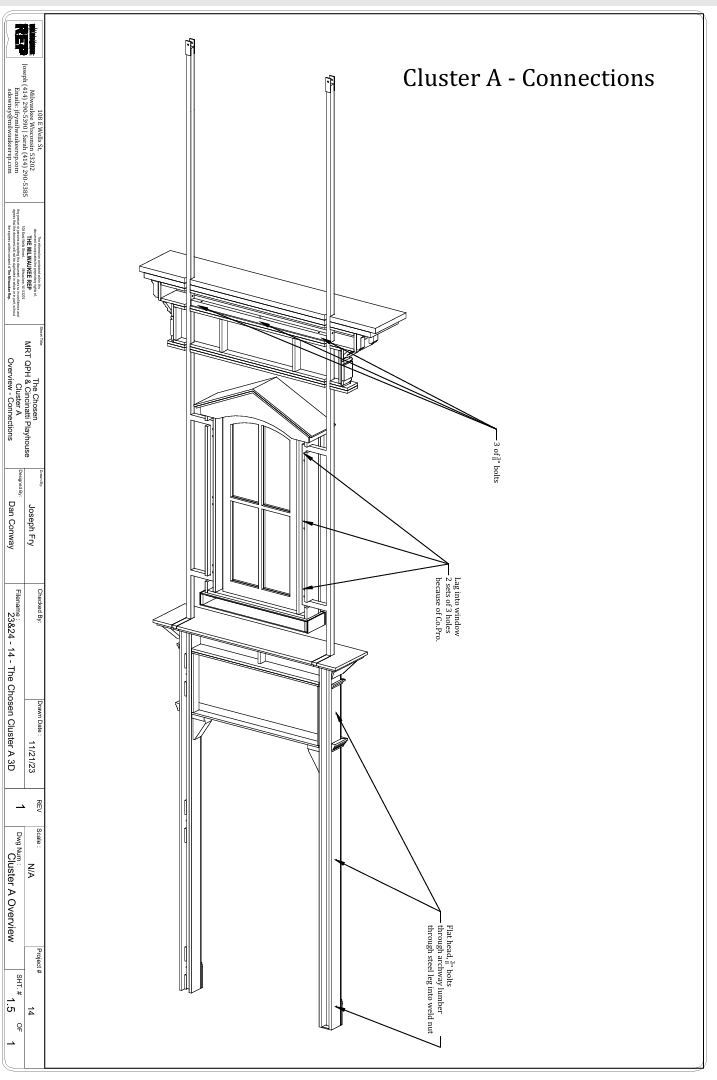

The Chosen - How to install the windows

Downloadable Build Plates as .pdf files

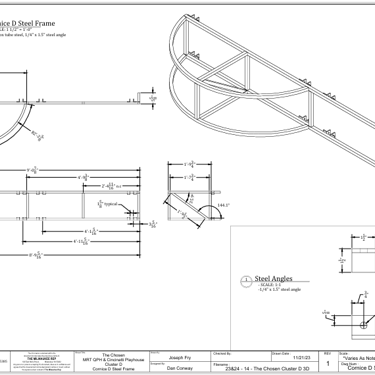

The Chosen - All Build Plates

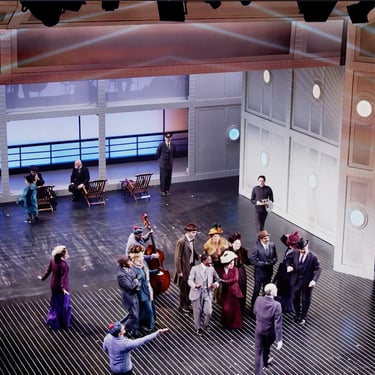

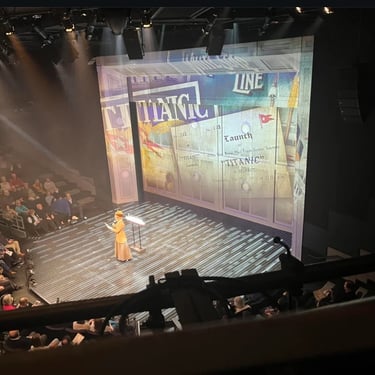

Titanic: the Musical at Milwaukee Repertory Theater

Build Plates I designed and drafted for the full stage portal. Drafted in both 2D and 3D. Fabricated and installed by the IATSE local 18 staff and overhire for the Milwaukee Repertory Theater in Spring'21.

Titanic Portal build plates - Legs

Titanic Portal build plates - Header

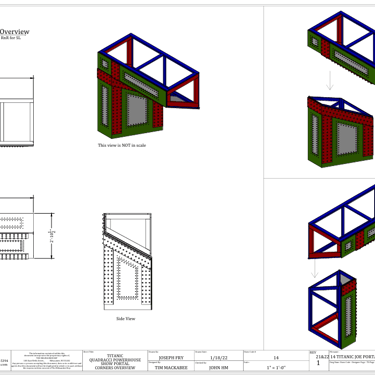

Titanic Portal build plates - Corners
